Pre-painted galvanized steel coil TPK-ALZINC

SKU: TPK-PPALZINC-1 Category:

Pre-painted galvanized steel coil of Tan Phuoc Khanh (TPK-PPALZINC) is produced with standard JIS G3322 (Japan); AS 2728 (Australia); ASTM A755/A755M (America). Nice and colourful product with feature of good resistant to environment condition, super durability.

TPK-PPALZINC is produced by color coating line: Input material after washing is covered with anh additive layer to increase adhension then painted with a primer layer before officially painted and dried.

Features of TPK-PPALZINC:

1. Long term dust resistance more than normal product.

2. High corrosion resistance; good other thermal resistance.

 Application:

1. Roofing industrail and civil works

2. Making rolling door, wall

3. Producing appliances, car body

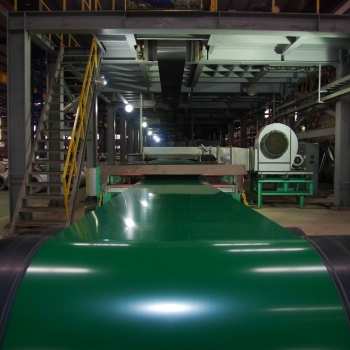

Production diagram of color plating line

Color scheme

Technical specifications Cold Plated color

Technology Non-oxidizing furnace – NOF

Advanced technology of Japan Japan Standard: JIS G3321

Standard USA standard: ASTM A792/A792M

USA: A755/A755M Australia standard: AS 1397 (G550); AS 1365 (G300)

Australia :AS 2728 0.16 – 1.2 mm

Japan: JIS G3322 750 – 1250 mm

Thickness 508mm, 610mm

  • – 1.2mm 0T – 1T

Width G350, G450, G550

750mm – 1250mm AZ50 – AZ200

Inner diameter 15 tons maximum

508mm, 610mm As required

Bending Yes

0T – 2T Flat surface of GL production, brightly, no-hole, punctured, scratched, rusty and other defects affect to product quality.

Gloss 500 hours maximum

Color Galvanized Specifications

Technology Advanced technology of Japan.

Standard USA standard: A755/A755M

Australia standard: AS2728

Japan standard: JIS G3312

Thickness 0.1 – 1.2mm

Width 750 – 1250mm

Inner diameter 508mm,610mm

Bending 0T – 3T

Gloss 32% – 85%

Hardness pencil ≥ 2H

Sticking no peeling

Top coating 15 – 25 (± 1 µm)

Bottom coating 5 -25 (± 1µm)

Solvent resistance MEK ≥ 100 DR

Impact resistance 1800gx200mm (min)

Volume coating AZ30 – AZ200

Salt spraying Top surface: 500 hours min

Bottom surface: 200 hours min.

Colors Customers’s option.

Surface of CGI The surface of production no-hole, punctured, scratched, rusty and other defects affect to product quality.
