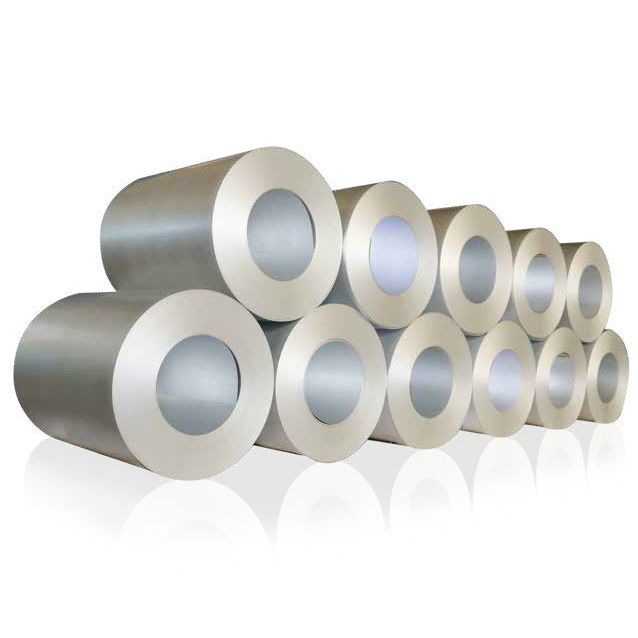

Galvanized steel coil TPK-ALZINC

TPK’s all GL-GI-PPGI products in coil, which were produced as Japan Standard JIS G3321 for alloy Al-Zn coated product (Galvalumed-GL) and JIS G3302 for Zn coated product (Galvanized-GI) & TPK’s standard TCCS …… Adapted from N.O.F technology & continuous gakvanizing hot-dip type. TPK’s GL-GI-PPGI products has high endurability against extreme-ly severe weather environment.

SKU: TPK-ALZINC-1 Category:

TPK’s all GL-GI-PPGI products in coil, which were produced as Japan Standard JIS G3321 for alloy Al-Zn coated product (Galvalumed-GL) and JIS G3302 for Zn coated product (Galvanized-GI) & TPK’s standard TCCS …… Adapted from N.O.F technology & continuous gakvanizing hot-dip type. TPK’s GL-GI-PPGI products has high endurability against extreme-ly severe weather environment.



Characteristics

  • Highanti-corosion
  • Long lasting brightness, no peeling off, no
  • scratch
  • Coating 43,5% Zn & 55% Al, 1,5% Si

Features of TPK-ALZINC

  • Anti heat radiation
  • Perfect heat rcristance
  • Long life span
  • Beautiful looking

 Dimension – Weight

Thickness  (mm) 0.16/18- 1.2
Width (mm) 914 ÷ 1250
Weight (kgs/ton) 5-10
Two (2) sides coating mass (gam/m2) 60-250
Coil inner diameter (Φmm) 508
Coil outer diameter (Φmm) 700-800-900-1000 (+/-)

Surface characteristics: regular spangle with Cr or Non-cr chemical-antifinger to protect & prevent finger excellently.

Applicaitons

  • Roofing industrail and civil works
  • Making rolling door, wall
  • Producing appliances, car body

Technical Specifications

Technology None Oxidizing Furnace – NOF.

Standard Japan standard: JIS G3321

USA standard: ASTM A792/A792M

Australia standard: AS 1397 (G550); AS 1365 (G300)

Thickness 0.16 – 1.2mm

Width 750 – 1250mm.

Inner diameter 508mm, 610mm

A brief description of three main stages of the production process of GL production:

  • Product surface treatment: the oil of surface on cold rolled steel is heated and removed by a cleaning equipment, electrochemical cleaning and oxygen furnace (NOF: None Oxidizing Furnace).
  • Coating the Aluminum Zinc Alloy: Cold rolled steel strip after cleaning the surface itself, coating with aluminum and zinc alloy and silicon. The volume coating and thickness of the aluminum alloy coating is controlled by the Air-knife, creating a uniform and beautiful surface.
  • Chemical coating: GL production is transferred to coat the painting which produce into PPGL production. The GL production is coated with anti-rust/ anti-finger chemical.

Bending 0T – 1T

Tensile G350, G450, G550

Volume coating AZ50 – AZ200

Weight coil 15 tons maximum

Skinpass As required

The chemical coating Yes

Surface of strip Flat surface of production, brightly, no-hole, punctured, scratched, rusty and other deffects affect to product quality.

Salt spraying 500 hours maximum





Application in life

    • Construction: Roofing, walls, gutters, fences, pipes, other products.
    • Argiculture: Water trough, silo, other products.
    • Accessories for industrial equipment: Insulating sheet, accessories for hot steam equipment, chimneys, preheating units, steam pipes, dryers, can, car wash equipment, and others.
    • Electrical accessories: shell of gas stove, oven cover, oven, radiation plate for dryer, air conditioner, refrigerator, cabinet, vending machine, washing machine, cabinet, shelf, electric stove, interior decorations, others.
